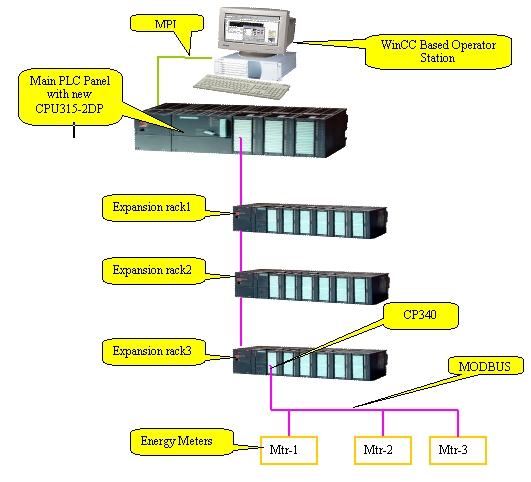

| System Configuration |
| 1 |
PLC/Drives |
|
:S7 CPU 315-2DP, CP340. ET200M .
|
|
| 2 |
HMI |
: Wincc. |
| 3 |
Communication Protocol |
: MODBUS, PROFIBUS,MPI . |
| 4 |
IO Count |
: 608 DI/DO, 56 AI/AO . |
| 5 |
Software |
: Step 7, Wincc 6.0 . |

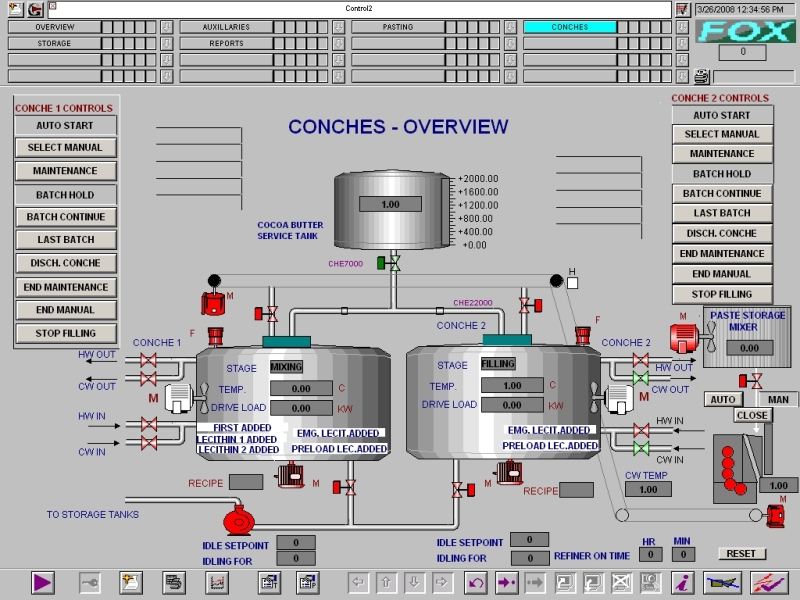

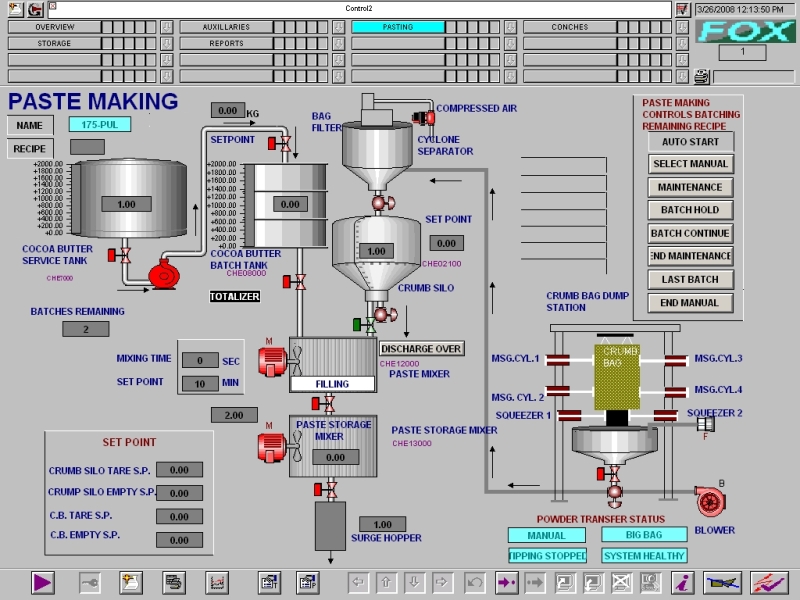

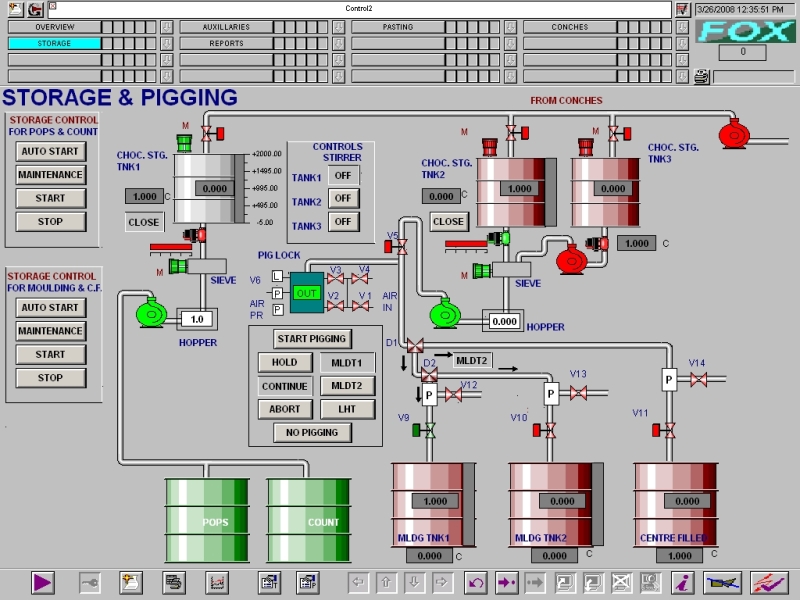

This is a major up-gradation project carried out at Cadbury Induri in Minimum Shutdown time of 3 days. The process includes batching & weighting of different ingredients in weighting tank, mixing, refining in 5-Roll refiner, and then Conching in Conch and storage in storage tank. The stored Chocolate paste is then used for production of different types of dairy milk and chocolate products. Complete transfer to different plant areas is controlled through this PLC system. CP340 is used to communicate with Alacrity energy meter on MODBUS ASCII protocol.
The scope of work included:
- Design and supply of control systems & cabinets.
- Software development
- Commissioning
|
